LEO

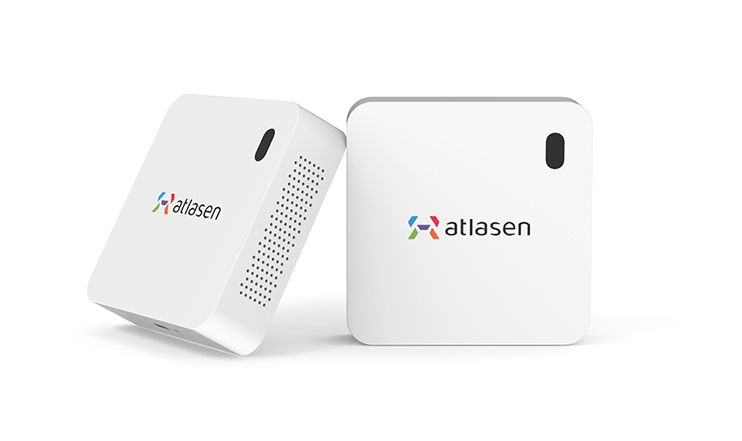

Atlasen™ LEO 1) collects and analyzes real-time IEQ data using an IoT multi-sensor module
2) presents results from the diagnosis in a user-friendly score and graph format and
3) improves occupant comfort through customizable zone-by-zone assessments.
Sensor Specification
- Sensor Capacity: Real-time IEQ Monitoring Device
- Dimension: 94 × 94 × 25 (mm)

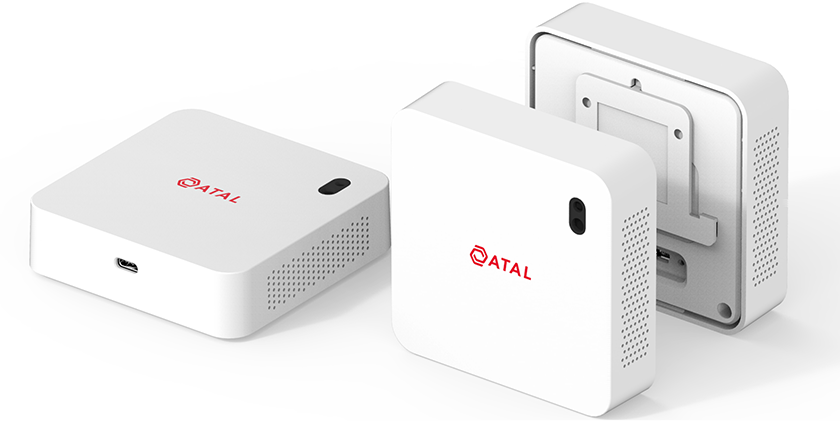

- Type: Desk / Wall Type, Wall-mounted Type
- Power Consumption: Less than 2 Watt (200mA)
- IoT Connectivity: Wi-Fi_802.11b/g/n(2.4GHz), LoRa, MYTHINGS
- Intervals: 15 min. (Adjustable)
- System Requirement: Android 4.1 or Later, Ios8 or Later
- Certification: KC, FCC, UL, RESET
| Category | Indices | |
| Thermal | 1 | Temperature |
| 2 | Relative Humidity | |
| Air | 3 | Carbon Dioxide (CO2) |
| 4 | Carbon Monoxide (CO) | |
| 5 | Total Volatile Organic Compounds (TVOC) | |
| 6 | Particulate Matters (PM10) | |
| 7 | Particulate Matters (PM2.5) | |
| 8 | Particulate Matters (PM1.0) | |
| 9 | Formaldehyde (HCHO) | |
| 10 | Nitrogen Dioxide (NO2) | |
| 11 | Ozone (O3) | |
| 12 | Ammonia (NH3) | |
| Lighting | 13 | Illuminance (Lux) |
| Acoustic | 14 | Sound level (dBA) |
| Spatial | 15 | Occupancy (Motion Detector) |

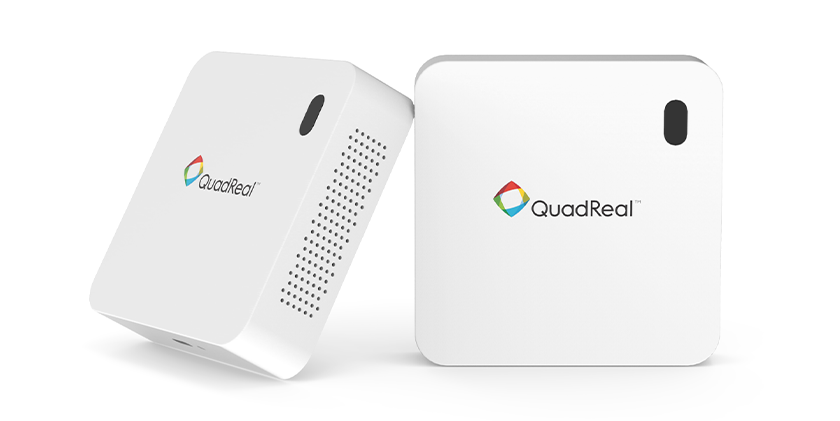

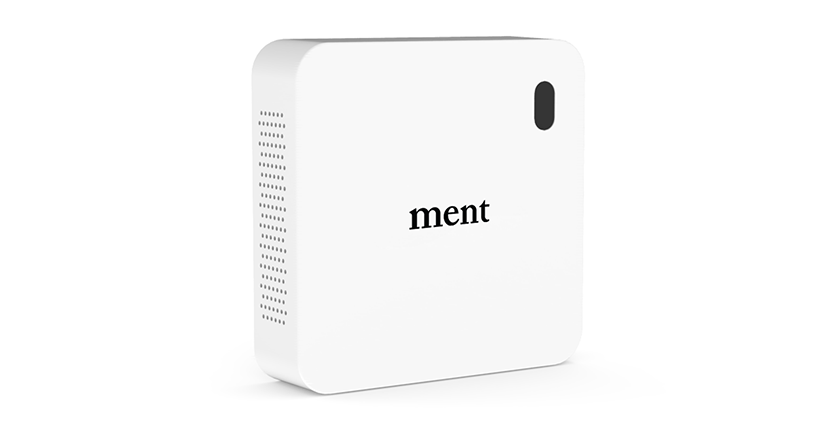

Put Your Company’s Logo on Leo
Images are for illustrative purposes only and may differ from the actual product.
